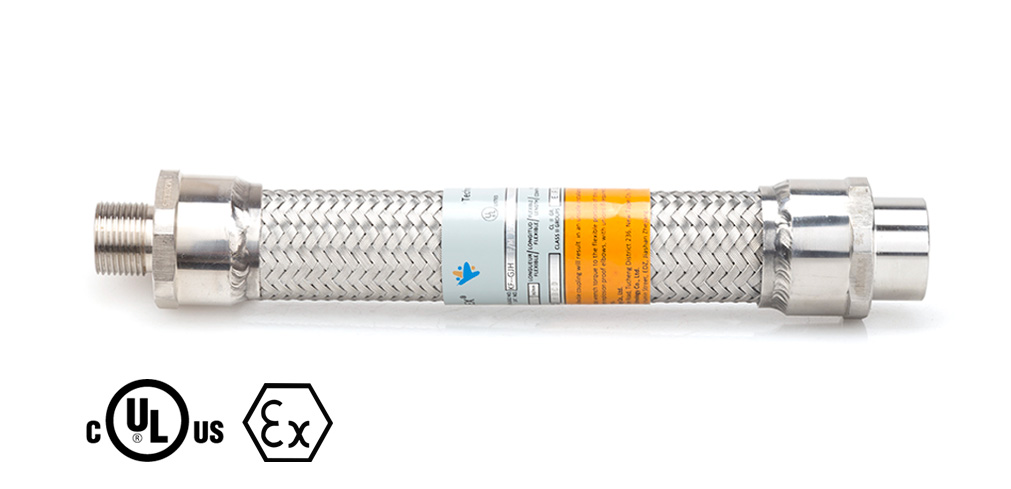

UL / IECEx 防爆金属软管，隔爆防尘型，一端内螺纹接头一端外螺纹接头 (1/2"~2")
UL / IECEx 防爆金属软管，隔爆防尘型，一端内螺纹接头一端外螺纹接头 KF--GJH-F/M 系列，整体结构密封不泄露，通过 UL 及 ATEX / IECEx 防爆标准的测试取得认证，管身柔软耐弯折，且耐压防爆，同时具备减震功能，适用于短距离，空间狭窄或长期震动部位的电气线路保护，为安装于危险环境或具有潜在爆炸风险场所中的电气设备提供坚强，高安全性的保护，共同维护高风险环境中的设施安全，大幅降低意外损失。隔爆防尘型防爆软管组为不锈钢材质，考虑安装需求，两端接头有内牙与外牙或一端内牙一端外牙，三种型式可供选择搭配。
适用于含有易爆气体或粉尘的环境中，例如：石化厂、炼油厂、海上钻油平台、气体生产工厂、化学工厂、谷物研磨工厂和加油 / 加气站…等等。
特性
-
材料：
- 标准：绝缘套管 + 不锈钢 304 内管 + 不锈钢 304 编织
- 可选择：绝缘套管 + 不锈钢 316 内管 + 不锈钢 316 编织 -
软管尺寸：
1/2"~2" -
软管长度 (L)：
最长不超过 36" (UL 规定) -
耐压强度：
Max. 2000 psi (1/2", 3/4"), Max. 1200 psi (1"~2") -
螺纹型式：
NPT、M -
RoHS：
符合 -
认证：
cULus (E490826), IECEx (IECEx UL 20.0075U), ATEX (DEMKO 20 ATEX 2393U), TS (TD09002U) -
ANSI/UL 1203
尺寸：1/2", 3/4"
--- Class I, Division 1, Groups A, B, C, D
--- Class II, Division 1, Groups E, F, G
--- Class III
尺寸：1", 1-1/4", 1-1/2", 2"
--- Class I, Division 1, Groups C, D
--- Class II, Division 1, Groups E, F, G
--- Class III -
IEC 60079
尺寸：1/2″ ~ 2″
Ex db ⅡC Gb
Ex tb ⅢC Db -
ATEX
尺寸：1/2″ ~ 2″
Ⅱ 2G Ex db ⅡC Gb
Ⅱ 2D Ex tb ⅢC Db
参数
| 软管长度 (L) | 螺牙 | 公称尺寸 (inch) | 弯曲半径 (mm) | 产品 | |||||
|---|---|---|---|---|---|---|---|
| 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" [註] | ||
| 254mm | 305mm | 356mm | 406mm | 406mm | 406mm | ||
| 4" | M | KF--GJH1F/M411 | KF--GJH2F/M411 | - | - | - | - |
| NPT | KF--GJH1F/M421 | KF--GJH2F/M421 | - | - | - | - | |
| F(M)/M(NPT) | KF--GJH1F/M431 | KF--GJH2F/M431 | - | - | - | - | |
| F(NPT)/M(M) | KF--GJH1F/M441 | KF--GJH2F/M441 | - | - | - | - | |
| 6" | M | KF--GJH1F/M611 | KF--GJH2F/M611 | KF--GJH3F/M611 | - | - | - |
| NPT | KF--GJH1F/M621 | KF--GJH2F/M621 | KF--GJH3F/M621 | - | - | - | |
| F(M)/M(NPT) | KF--GJH1F/M631 | KF--GJH2F/M631 | KF--GJH3F/M631 | - | - | - | |
| F(NPT)/M(M) | KF--GJH1F/M641 | KF--GJH2F/M641 | KF--GJH3F/M641 | - | - | - | |
| 8" | M | KF--GJH1F/M811 | KF--GJH2F/M811 | KF--GJH3F/M811 | - | - | - |
| NPT | KF--GJH1F/M821 | KF--GJH2F/M821 | KF--GJH3F/M821 | - | - | - | |
| F(M)/M(NPT) | KF--GJH1F/M831 | KF--GJH2F/M831 | KF--GJH3F/M831 | - | - | - | |
| F(NPT)/M(M) | KF--GJH1F/M841 | KF--GJH2F/M841 | KF--GJH3F/M841 | - | - | - | |
| 10" | M | KF--GJH1F/M1011 | KF--GJH2F/M1011 | KF--GJH3F/M1011 | - | - | - |
| NPT | KF--GJH1F/M1021 | KF--GJH2F/M1021 | KF--GJH3F/M1021 | - | - | - | |
| F(M)/M(NPT) | KF--GJH1F/M1031 | KF--GJH2F/M1031 | KF--GJH3F/M1031 | - | - | - | |
| F(NPT)/M(M) | KF--GJH1F/M1041 | KF--GJH2F/M1041 | KF--GJH3F/M1041 | - | - | - | |
| 12" | M | KF--GJH1F/M1211 | KF--GJH2F/M1211 | KF--GJH3F/M1211 | KF--GJH4F/M1211 | KF--GJH5F/M1211 | KF--GJH6F/M1211 |
| NPT | KF--GJH1F/M1221 | KF--GJH2F/M1221 | KF--GJH3F/M1221 | KF--GJH4F/M1221 | KF--GJH5F/M1221 | KF--GJH6F/M1221 | |
| F(M)/M(NPT) | KF--GJH1F/M1231 | KF--GJH2F/M1231 | KF--GJH3F/M1231 | KF--GJH4F/M1231 | KF--GJH5F/M1231 | KF--GJH6F/M1231 | |
| F(NPT)/M(M) | KF--GJH1F/M1241 | KF--GJH2F/M1241 | KF--GJH3F/M1241 | KF--GJH4F/M1241 | KF--GJH5F/M1241 | KF--GJH6F/M1241 | |
| 15" | M | KF--GJH1F/M1511 | KF--GJH2F/M1511 | KF--GJH3F/M1511 | KF--GJH4F/M1511 | KF--GJH5F/M1511 | KF--GJH6F/M1511 |
| NPT | KF--GJH1F/M1521 | KF--GJH2F/M1521 | KF--GJH3F/M1521 | KF--GJH4F/M1521 | KF--GJH5F/M1521 | KF--GJH6F/M1521 | |
| F(M)/M(NPT) | KF--GJH1F/M1531 | KF--GJH2F/M1531 | KF--GJH3F/M1531 | KF--GJH4F/M1531 | KF--GJH5F/M1531 | KF--GJH6F/M1531 | |
| F(NPT)/M(M) | KF--GJH1F/M1541 | KF--GJH2F/M1541 | KF--GJH3F/M1541 | KF--GJH4F/M1541 | KF--GJH5F/M1541 | KF--GJH6F/M1541 | |
| 18" | M | KF--GJH1F/M1811 | KF--GJH2F/M1811 | KF--GJH3F/M1811 | KF--GJH4F/M1811 | KF--GJH5F/M1811 | KF--GJH6F/M1811 |
| NPT | KF--GJH1F/M1821 | KF--GJH2F/M1821 | KF--GJH3F/M1821 | KF--GJH4F/M1821 | KF--GJH5F/M1821 | KF--GJH6F/M1821 | |
| F(M)/M(NPT) | KF--GJH1F/M1831 | KF--GJH2F/M1831 | KF--GJH3F/M1831 | KF--GJH4F/M1831 | KF--GJH5F/M1831 | KF--GJH6F/M1831 | |
| F(NPT)/M(M) | KF--GJH1F/M1841 | KF--GJH2F/M1841 | KF--GJH3F/M1841 | KF--GJH4F/M1841 | KF--GJH5F/M1841 | KF--GJH6F/M1841 | |
| 21" | M | KF--GJH1F/M2111 | KF--GJH2F/M2111 | KF--GJH3F/M2111 | KF--GJH4F/M2111 | KF--GJH5F/M2111 | KF--GJH6F/M2111 |
| NPT | KF--GJH1F/M2121 | KF--GJH2F/M2121 | KF--GJH3F/M2121 | KF--GJH4F/M2121 | KF--GJH5F/M2121 | KF--GJH6F/M2121 | |
| F(M)/M(NPT) | KF--GJH1F/M2131 | KF--GJH2F/M2131 | KF--GJH3F/M2131 | KF--GJH4F/M2131 | KF--GJH5F/M2131 | KF--GJH6F/M2131 | |
| F(NPT)/M(M) | KF--GJH1F/M2141 | KF--GJH2F/M2141 | KF--GJH3F/M2141 | KF--GJH4F/M2141 | KF--GJH5F/M2141 | KF--GJH6F/M2141 | |
| 24" | M | KF--GJH1F/M2411 | KF--GJH2F/M2411 | KF--GJH3F/M2411 | KF--GJH4F/M2411 | KF--GJH5F/M2411 | KF--GJH6F/M2411 |
| NPT | KF--GJH1F/M2421 | KF--GJH2F/M2421 | KF--GJH3F/M2421 | KF--GJH4F/M2421 | KF--GJH5F/M2421 | KF--GJH6F/M2421 | |
| F(M)/M(NPT) | KF--GJH1F/M2431 | KF--GJH2F/M2431 | KF--GJH3F/M2431 | KF--GJH4F/M2431 | KF--GJH5F/M2431 | KF--GJH6F/M2431 | |
| F(NPT)/M(M) | KF--GJH1F/M2441 | KF--GJH2F/M2441 | KF--GJH3F/M2441 | KF--GJH4F/M2441 | KF--GJH5F/M2441 | KF--GJH6F/M2441 | |
| 27" | M | KF--GJH1F/M2711 | KF--GJH2F/M2711 | KF--GJH3F/M2711 | KF--GJH4F/M2711 | KF--GJH5F/M2711 | KF--GJH6F/M2711 |
| NPT | KF--GJH1F/M2721 | KF--GJH2F/M2721 | KF--GJH3F/M2721 | KF--GJH4F/M2721 | KF--GJH5F/M2721 | KF--GJH6F/M2721 | |
| F(M)/M(NPT) | KF--GJH1F/M2731 | KF--GJH2F/M2731 | KF--GJH3F/M2731 | KF--GJH4F/M2731 | KF--GJH5F/M2731 | KF--GJH6F/M2731 | |
| F(NPT)/M(M) | KF--GJH1F/M2741 | KF--GJH2F/M2741 | KF--GJH3F/M2741 | KF--GJH4F/M2741 | KF--GJH5F/M2741 | KF--GJH6F/M2741 | |
| 30" | M | KF--GJH1F/M3011 | KF--GJH2F/M3011 | KF--GJH3F/M3011 | KF--GJH4F/M3011 | KF--GJH5F/M3011 | KF--GJH6F/M3011 |
| NPT | KF--GJH1F/M3021 | KF--GJH2F/M3021 | KF--GJH3F/M3021 | KF--GJH4F/M3021 | KF--GJH5F/M3021 | KF--GJH6F/M3021 | |
| F(M)/M(NPT) | KF--GJH1F/M3031 | KF--GJH2F/M3031 | KF--GJH3F/M3031 | KF--GJH4F/M3031 | KF--GJH5F/M3031 | KF--GJH6F/M3031 | |
| F(NPT)/M(M) | KF--GJH1F/M3041 | KF--GJH2F/M3041 | KF--GJH3F/M3041 | KF--GJH4F/M3041 | KF--GJH5F/M3041 | KF--GJH6F/M3041 | |
| 33" | M | KF--GJH1F/M3311 | KF--GJH2F/M3311 | KF--GJH3F/M3311 | KF--GJH4F/M3311 | KF--GJH5F/M3311 | KF--GJH6F/M3311 |
| NPT | KF--GJH1F/M3321 | KF--GJH2F/M3321 | KF--GJH3F/M3321 | KF--GJH4F/M3321 | KF--GJH5F/M3321 | KF--GJH6F/M3321 | |
| F(M)/M(NPT) | KF--GJH1F/M3331 | KF--GJH2F/M3331 | KF--GJH3F/M3331 | KF--GJH4F/M3331 | KF--GJH5F/M3331 | KF--GJH6F/M3331 | |
| F(NPT)/M(M) | KF--GJH1F/M3341 | KF--GJH2F/M3341 | KF--GJH3F/M3341 | KF--GJH4F/M3341 | KF--GJH5F/M3341 | KF--GJH6F/M3341 | |
| 36" | M | KF--GJH1F/M3611 | KF--GJH2F/M3611 | KF--GJH3F/M3611 | KF--GJH4F/M3611 | KF--GJH5F/M3611 | KF--GJH6F/M3611 |
| NPT | KF--GJH1F/M3621 | KF--GJH2F/M3621 | KF--GJH3F/M3621 | KF--GJH4F/M3621 | KF--GJH5F/M3621 | KF--GJH6F/M3621 | |
| F(M)/M(NPT) | KF--GJH1F/M3631 | KF--GJH2F/M3631 | KF--GJH3F/M3631 | KF--GJH4F/M3631 | KF--GJH5F/M3631 | KF--GJH6F/M3631 | |
| F(NPT)/M(M) | KF--GJH1F/M3641 | KF--GJH2F/M3641 | KF--GJH3F/M3641 | KF--GJH4F/M3641 | KF--GJH5F/M3641 | KF--GJH6F/M3641 | |
備註：公稱尺寸 2"，採用 1-1/2" 軟管規格。
